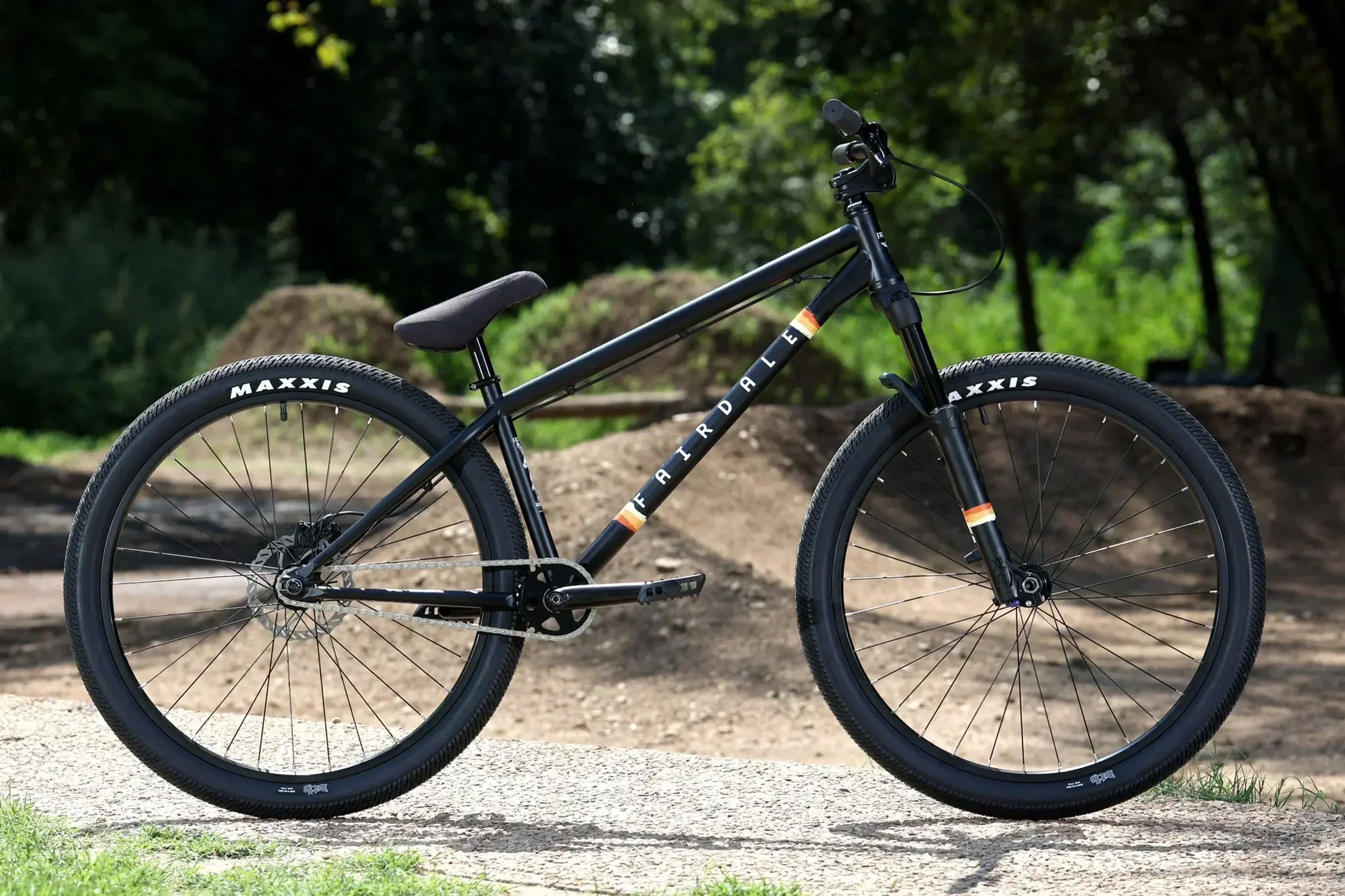

Fairdale Hareraiser FX (Suspension Fork)
Introducing the Fairdale Hareraiser complete bike.
After successfully introducing the Hareraiser frame, we were asked many times for a complete bike. The frame continues to be a fully capable 26" DJ frame is made of 100% 4130 chromoly with a 3/8" axle slot, integrated chain tensioners, BSA 73mm threaded bottom bracket, ultra-short chainstays and a tapered 1-1/8” to 1-1/2” head tube with removable tabs for a traditional BMX-style Gyro.
The Hareraiser complete is available as both a rigid and a front suspension (FX) version.
The rigid version comes equipped with a Fairdale Hareraiser Chromoly fork with a 15mm through axle. Leaning into our BMX roots with a Fairdale MX-4 handlebar attached to a Sunday Freeze Front Load stem.
The Hareraiser FX will come stock with a Manitou Expert fork in Black with 100mm of travel and a 20mm through axle. Along with Odyssey brake lever, Odyssey Big Stitch seat, and Maxxis DTH 2.3" tyres front and rear.
Designed from the ground up to make the transition between riding a MTB, DJ bike, and BMX as seamless as possible.
Available in Matte Black
Sizing
26": 5'6" height and up
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specs
Frame: 100% 4130 chromoly DJ frame, 3/8" Dropout, Threaded 73mm BB, Disc Mount
Fork: Manitou Circus Expert, 100mm, 20mm Thru-Axle
Handlebar: 2" rise, 30" wide, 31.8mm bore, Aluminum
Stem: 50mm
Headset: FSA Orbit Sealed
Brake Lever: Hydraulic
Brakes: Hydraulic
Grips: Lock-on
Saddle: Odyssey Big Stitch, Pivotal
Seat Post: Pivotal 27.2mm
Seat Clamp: Fairdale 30mm
Cranks: 19mm 48-Spline, 170mm
Chainwheel: 28T
BB Parts: Euro
Pedals: Odyssey Twisted Pro PC
Rims: 26" 32H
Front Hub: Sealed 20mm Thru Axle
Rear Hub: Sealed Cassette, 3/8" Axle, Disc
Tires: Maxxis DTH 2.3"
Chain: KMC Z1eHX
Driver: 12TGeometry
| Build | FX/Suspension | Rigid |
| Fork Travel | 100mm | N/A |
| Fork Axle To Crown | 482mm | 455mm |
| Fork Offset | 40mm | 30mm |
| Top Tube (Effective) | 625mm | 625mm |
| Seat Tube (BB Center To TT Center) | 340mm | 340mm |
| Seat Tube Angle | 72° | 70.5° |
| Head Tube Length | 120mm | 120mm |
| Head Tube Angle | 69.5° | 73° |
| Chain Stay Length | 379-389mm | 379-389mm |
| Standover | 690mm | 678mm |
| Stack | 570mm | 561mm |
| Reach | 440mm | 452mm |
| BB Drop | 20mm | 28mm |
| Rear Dropout Spacing | 10x135mm | 10x135mm |
| BB Type | 73mm Threaded | 73mm Threaded |
| Seat Post | 27.2mm | 27.2mm |
| Seat Clamp | 30mm | 30mm |
| Rear Tire Clearance | 2.3" | 2.3" |
| Wheel Size | 26" | 26" |
